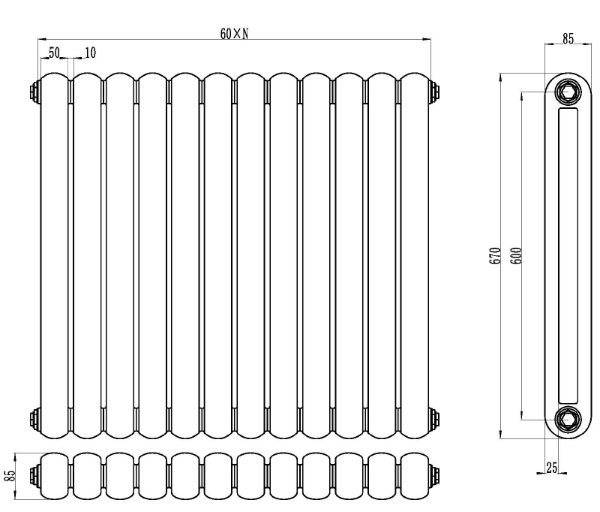

5025 steel two-column radiator (round head)
Brand: Rongyang; Model: GZ2 5025 (round head); Steel pipe: φ50*25mm; Clearance: 10mm; Center distance: 600mm; Total height: 670mm
- Product Description
-
Brand: Rongyang
Model: GZ2 5025 (round head)
Steel pipe: φ50*25mm
Clearance: 10mm
Center distance: 600mm
Total height: 670mm
Thickness: 85mm
Base pipe wall thickness: 1.5mm, 1.8mm, 2.0mm, 2.5mm
Head wall thickness: 1.8mm, 2.0mm, 2.3mm, 2.8mm
Material: low carbon steel pipe
Standard accessories: running wind, plug, hook
Installation: wall-mounted/floor typeSteel Ellipsoid Tube Radiator Selection Table (5025 Round Head) Specifications and models Center distance of inlet and outlet on the same side (mm) Height
(Mm)single column
length x width
(Mm× mm)Working pressure
(Mpa)water capacity
(L)heat dissipation
ΔT = 64.5 ℃(W)heat dissipation
ΔT = 44.5 ° C (W)RYGTY203-5025 300 380 60 × 85 1.0 0.810 63.3 39.1 RYGTY204-5025 400 480 60 × 85 1.0 0.970 77.2 48.6 RYGTY205-5025 500 580 60 × 85 1.0 1.130 91.8 57.0 RYGTY206-5025 600 680 60 × 85 1.0 1.290 105.0 65.2 RYGTY207-5025 700 780 60 × 85 1.0 1.450 119.6 74.1 RYGTY208-5025 800 880 60 × 85 1.0 1.610 134.4 85.8 RYGTY209-5025 900 980 60 × 85 1.0 1.770 148.2 91.4 RYGTY210-5025 1000 1080 60 × 85 1.0 1.930 161.4 99.2 RYGTY211-5025 1100 1180 60 × 85 1.0 2.090 175.2 108.9 RYGTY212-5025 1200 1280 60 × 85 1.0 2.260 189.2 117.6 RYGTY213-5025 1300 1380 60 × 85 1.0 2.420 204.6 125.9 RYGTY214-5025 1400 1480 60 × 85 1.0 2.580 220.9 135.8 RYGTY215-5025 1500 1580 60 × 85 1.0 2.740 237.0 145.8 RYGTY216-5025 1600 1680 60 × 85 1.0 2.900 251.7 154.7 RYGTY217-5025 1700 1780 60 × 85 1.0 3.060 267.9 164.5 RYGTY218-5025 1800 1880 60 × 85 1.0 3.220 284.1 174.8
