SRL heat sink

The finned tube of SRL finned tube radiator adopts the process of winding aluminum fins with steel tube, which is smooth, free of burrs, wrinkle-free and easy to clean. It is easy to remove condensed water on the fin surface during wet cooling in heating and air conditioning engineering, and is not easy to form dust and scale in dry heating and other heat exchange occasions.

Classification:

SRL heat sink

Service Support:

hsrongyangnuantong@163.com

Get Quote
Related Products
  • Product Description

  • 1. SRL Heatsink Overview

    1. The finned tube of SRL finned tube radiator adopts the process of winding aluminum fins with steel tube, which is smooth, free of burrs, wrinkle-free and easy to clean. When wet cooling is carried out in heating and air conditioning engineering, it is easy to remove condensed water on the surface of the fins, and it is not easy to form dust and scale in dry heating and other heat exchange occasions.

    2.SRL finned tube radiator is composed of carbon steel frame and steel aluminum fin heat dissipation pipe. The heat dissipation pipe is fixed by frame, with compact structure, good air tightness and convenient installation.

    3.SRL finned tube radiator is composed of steel tube aluminum fin tube bundle, which is divided into two rows and three rows along the airflow direction, with a total of 37 models;

    4. The working heat medium of SRL finned tube radiator can be steam or hot water, steam (≤ 1.6MPa), hot water (≤ 300 ℃).

    5.SRL finned tube radiator has the advantages of good heat transfer performance, high strength, low flow loss, high corrosion resistance, not easy to deform under long-term hot and cold conditions, and long working life.

    6.SRL finned tube radiator is mainly used in the air heating system of hot air heating, air conditioning and drying device. It is the main equipment in hot air device. It is widely used in the heating and ventilation system of large buildings in the current industrial and mining enterprises.

    7.SRL finned tube radiator model description: ① × ②/③

    ①, ②-respectively, the radiator length, width size decimeter

    ③-Number of rows of heat pipe

    For example, 12 × 5/3 means that the surface is 1250mm long and 545mm wide, and consists of 3 rows of heat dissipation pipes.

    2. SRL finned tube radiator features

    1. Compact structure: the use of steel tube aluminum fin tube bundle, close contact, good heat dissipation performance;

    2. Cost saving: the price is much lower than the price of the hot blast stove, and its performance-price ratio is high;

    3. Careful processing: advanced processing technology, strict quality assurance system, strict organization, careful processing;

    4. Easy to install: installation, use, maintenance is simple and convenient, low labor intensity;

    5. High cost performance: SRL heat dissipation finned tube is made of seamless steel tube wound aluminum. Due to the high heat transfer coefficient of aluminum, low contact thermal resistance, high strength, thermal shock and mechanical vibration resistance, good thermal expansion performance, and considerable expansion of heat transfer surface.

    Technical parameters of 3. SRL type radiator

    Table 1. The experimental formula of SRL radiator performance under different working conditions:

    Radiator model heat medium Heat transfer coefficient K value kcal/m² h ℃ Resistance mm water column
    SRLB× A/2 Steam (one gauge) K = 13.1(Vr)0.40 H=0.174（Vr）1.67
    130 ℃ superheated water (flow rate 0.023-0.037) K = 14.2(Vr)0.24 H=0.153（Vr）1.58
    SRLB× A/3 Steam (one gauge) K = 13.0(Vr)0.43 H=0.309（Vr）1.62
    superheated water 130 ℃ (flow rate 0.0154-0.038) K = 12.5(Vr)0.29 H=0.296（Vr）1.58

    Table 2. List of SRL finned tube radiator heat dissipation area F(m²), ventilation net cross-sectional area Ff(m²), reference weight W(Kg), installation dimensions, etc.

    Model Net cross-sectional area of ventilation (m2) Heat dissipation area (m2) heat medium Number of tube bundles (root) Heating area (m2) Dimensions (mm) Connecting pipe (inch) Weight (kg)
    A B A1 B1 A2 B2 A3 B3 C
    SRL 5 × 5/3 0.11 16.7 Steamed
    Steam
    or
    Heat
    Water



    		 35 0.88 500 400 545 500 575 540 605 570 180 1 1/4" 51
    SRL 5 × 5/2 0.11 11 23 0.58 150 38
    SRL 10 × 5/3 0.22 34 35 1.76 900 1000 1040 1070 180 83
    SRL 10 × 5/2 0.22 22.3 23 1.16 150 50
    SRL 12 × 5/3 0.27 42.6 35 2.2 1200 1250 1290 1320 180 99
    SRL 12 × 5/2 0.27 28 23 1.45 150 71
    SRL 6 × 6/3 0.15 23.6 41 1.24 600 500 635 600 665 640 695 670 180 1 1/2" 66
    SRL 6 × 6/2 0.15 15.6 27 0.82 150 43
    SRL 10 × 6/3 0.26 39.8 41 2.06 900 1000 1040 1070 180 95
    SRL 10 × 6/2 0.26 26.2 27 1.36 150 49
    SRL 12 × 6/3 0.32 49.9 41 2.58 1200 1250 1290 1320 180 113
    SRL 12 × 6/2 0.32 32.9 27 1.7 150 81
    SRL 15 × 6/3 0.39 60 41 3.09 1400 1500 1540 1570 180 131
    SRL 15 × 6/2 0.39 39.5 27 2.04 150 94
    SRL 24 × 6/3 0.6 95.8 41 4.89 2300 2400 2440 2470 180 197
    SRL 24 × 6/2 0.6 63.1 27 3.23 150 138
    SRL 7 × 7/3 0.21 31.7 47 1.65 700 600 725 700 755 740 785 770 180 2" 83
    SRL 7 × 7/2 0.21 20.9 31 1.09 150 60
    SRL 10 × 7/3 0.3 45.7 47 2.36 900 1000 1040 1070 180 107
    SRL 10 × 7/2 0.3 31 31 1.56 150 77
    SRL 12 × 7/3 0.37 57.2 47 2.96 1200 1250 1290 1320 180 127
    SRL 12 × 7/2 0.37 37.8 31 1.95 150 91
    SRL 14 × 7/3 0.43 66.1 47 3.41 1400 1450 1490 1520 180 144
    SRL 14 × 7/2 0.43 43.6 31 2.25 150 102
    SRL 15 × 7/3 0.45 68.8 47 3.54 1400 1500 1540 1570 180 148
    SRL 15 × 7/2 0.45 45.4 31 2.34 150 105
    SRL 17 × 7/3 0.5 80.4 47 4.13 1700 1750 1790 1820 180 169
    SRL 17 × 7/2 0.5 53.1 31 2.73 150 120
    SRL 22 × 7/3 0.66 101.3 47 5.21 2100 2200 2240 2270 180 196
    SRL 22 × 7/2 0.66 66.8 31 3.43 150 145
    SRL15x10/3 0.69 95.2 65 4.91 900 1400 995 1500 1025 1540 1055 1570 180 2 1/2" 215
    SRL15x10/2 0.69 63 43 3.25 150 140
    SRL17x10/3 0.74 114.4 65 5.72 1700 1750 1790 1820 180 226
    SRL17x10/2 0.74 73.6 43 3.89 150 159
    SRL 20 × 10/3 0.85 127.5 65 6.54 1900 2000 2040 2070 180 252
    SRL 20 × 10/2 0.85 84.2 43 4.33 150 177
    SRL 14 × 8/2 0.54 50.7 35 2.55 800 1400 815 1450 845 1490 875 1520 150 2" 108

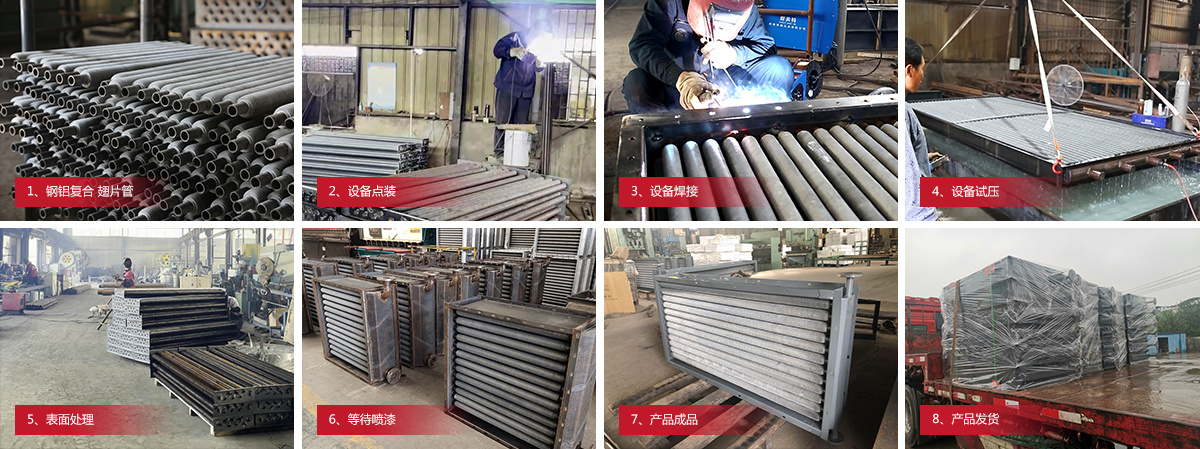

    Production process
