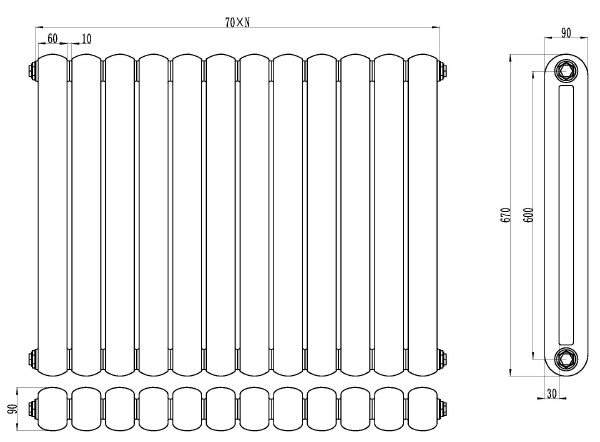

6030 steel two-column radiator (round head)
Brand: Rongyang; Model: GZ2 6030 (round head); Steel pipe: φ60*30mm; Clearance: 10mm; Center distance: 600mm; Total height: 670mm
- Product Description
-
Brand: Rongyang
Model: GZ2 6030 (round head)
Steel pipe: φ60*30mm
Clearance: 10mm
Center distance: 600mm
Total height: 670mm
Thickness: 90mm
Base pipe wall thickness: 1.5mm, 1.8mm, 2.0mm, 2.5mm
Head wall thickness: 1.8mm, 2.0mm, 2.3mm, 2.8mm
Material: low carbon steel pipe
Standard accessories: running wind, plug, hook
Installation: wall-mounted/floor typeSteel Ellipsoid Tube Radiator Selection Table (6030 Round Head) Specifications and models Center distance of inlet and outlet on the same side (mm) Height
(Mm)single column
length x width
(Mm× mm)Working pressure
(Mpa)water capacity
(L)heat dissipation
ΔT = 64.5 ℃(W)heat dissipation
ΔT = 44.5 ° C (W)RYGTY203-6030 300 370 70 x 90 1.0 1.080 73.6 45.5 RYGTY204-6030 400 470 70 x 90 1.0 1.320 89.8 54.4 RYGTY205-6030 500 570 70 x 90 1.0 1.560 106.8 66.3 RYGTY206-6030 600 670 70 x 90 1.0 1.810 122.1 76.0 RYGTY207-6030 700 770 70 x 90 1.0 2.050 139.2 86.8 RYGTY208-6030 800 870 70 x 90 1.0 2.290 156.2 97.0 RYGTY209-6030 900 970 70 x 90 1.0 2.535 172.4 106.8 RYGTY210-6030 1000 1070 70 x 90 1.0 2.780 187.7 116.2 RYGTY211-6030 1100 1170 70 x 90 1.0 3.025 203.8 127.1 RYGTY212-6030 1200 1270 70 x 90 1.0 3.260 220.0 137.6 RYGTY213-6030 1300 1370 70 x 90 1.0 3.500 237.9 147.3 RYGTY214-6030 1400 1470 70 x 90 1.0 3.740 256.8 158.5 RYGTY215-6030 1500 1570 70 x 90 1.0 3.990 275.6 170.3 RYGTY216-6030 1600 1670 70 x 90 1.0 4.230 292.7 180.7 RYGTY217-6030 1700 1770 70 x 90 1.0 4.460 311.6 192.3 RYGTY218-6030 1800 1870 70 x 90 1.0 4.710 330.4 204.1
