Arc tube five-column radiator

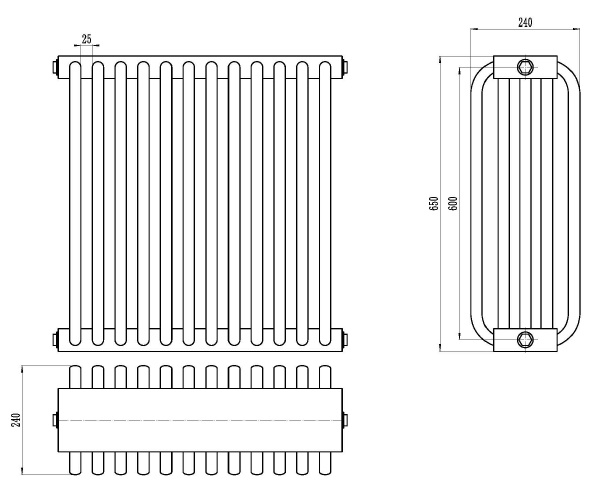

Brand: Rongyang; Model: GGZ5; Steel pipe: DN20(6 points); Clearance: 25mm; Center distance: 600mm; Total height: 650mm
- Product Description
-
Brand: Rongyang
Model: GGZ5
Steel pipe: DN20(6 points)
Gap: 25mm
Center distance: 600mm
Total height: 650mm
Thickness: 240mm
Wall thickness: 2.2mm, 2.5mm
Material: low pressure fluid straight seam welded pipe
Standard accessories: running wind, plug, hook
Installation: wall-mounted/floor typeRY-GHG steel header pipe corrosion-resistant radiator Specifications and models Height (mm) Center distance of inlet and outlet on the same side
h（mm）Thickness B
(Mm)Sheet distance L
(Mm)Heat dissipation area
m²/piecewater capacity
Kg/tabletheat dissipation
ΔT = 44.5 ℃ (W/piece)heat dissipation
ΔT = 64.5 ℃(W/piece)metal heat strength
W/KgH°CWorking pressure (Mpa) Calculated official Q = C(ΔTⁿ(W) RY-GHG504 460 400 220 50 0.21 1.34 74.2 119.5 0.60 1.2 Q = 0.572ΔT1.282 RY-GHG505 560 500 220 50 0.25 1.52 87.7 141.2 0.59 1.2 Q = 0.676ΔT1.282 RY-GHG506 660 600 220 50 0.29 1.71 101.2 162.9 0.58 1.2 Q = 0.780ΔT1.282 RY-GHG507 760 700 220 50 0.33 1.90 114.7 184.6 0.57 1.2 Q = 0.884ΔT1.282 RY-GHG508 860 800 220 50 0.37 2.09 128.2 206.4 0.56 1.2 Q = 0.988ΔT1.282 RY-GHG509 960 900 220 50 0.42 2.27 141.7 228.1 0.54 1.2 Q = 1.092ΔT1.282 RY-GHG512 1260 1200 220 50 0.54 2.83 179.0 288.0 0.51 1.2 Q = 1.379ΔT1.282 RY-GHG516 1660 1600 220 50 0.70 3.58 228.7 368.0 0.47 1.2 Q = 1.762ΔT1.282 RY-GHG518 1860 1800 220 50 0.78 3.95 252.9 407.1 0.45 1.2 Q = 1.949ΔT1.282 RY-GHG520 2060 2000 220 50 0.86 4.31 277.9 447.2 0.44 1.2 Q = 2.141ΔT1.282
Company Profile
The company's main products include fin tubes, fin tube radiators, fin tube heat exchangers, heaters, air preheaters, air coolers, etc. Product materials include steel, stainless steel, steel-aluminum composite, etc., and are widely used in chemical, petroleum, power, electric power, food, textile, printing and dyeing and other industries. The company strives for survival by quality, seeks benefits from management, takes scientific and technological innovation as the driving force for development, regards integrity as the foundation of the enterprise, and establishes a customer-centered business philosophy. Our products cover nearly 30 provinces, cities, and autonomous regions in China, and we have established long-term cooperative relationships with many of the top 500 companies in the country.
Personalized Customization Process
Product specifications and models, support processing customization
