Carbon steel stainless steel finned tube
High frequency welding carbon steel stainless steel finned tube is a new, wear-resistant, high-efficiency heat exchange material, is a high-efficiency and energy-saving heat exchange element
- Product Description
-
1. Overview
High frequency welding carbon steel stainless steel finned tube is a new, wear-resistant, high-efficiency heat exchange material, is a high-efficiency and energy-saving heat exchange element
2. production process
It uses national-level technology to use high-frequency welding production technology, and uses high-frequency power as the heat source to heat steel strips and stainless steel pipes at the same time, so that they are welded together into one body. It has high heat exchange efficiency, large heat dissipation area, and long service life. Adapt to the characteristics of wide temperature range and high pressure. The production process is to wind the strip steel with a thickness of 0.8-1mm on the finned tube, and at the same time, the high-frequency welding process is adopted to weld the fins on the tube to ensure the joint strength between the tube and the fins, and the metal thermal strength has reached 1.10~1.20 w/kg ℃.
3. features
1. The installation is simple and economical. The maximum length of the high-frequency welding spiral finned tube can reach 6 meters, which reduces the connection point, makes the installation more economical and fast, and reduces the probability of water leakage at the connection.
2. easy maintenance, high frequency welding spiral finned tube after installation, basically no longer need to maintain.
3. High efficiency, high-frequency welding spiral finned tube is full contact welding of fin and steel pipe winding, the heat dissipation area is more than 8 times that of the smooth tube, the interior is smoother, and the internal water flow resistance is small.
4. Long service life, high mechanical strength combined with fins and pipes, tensile strength of more than 200Mpa, all inside and outside the tube using hot galvanizing treatment.
4. Application Areas
It is widely used in waste heat recovery, petrochemical industry, power station boiler, economizer, bus, industrial and civil building heating, refrigeration, medicine drying, wood drying, grain drying system, light industry, electric power, metallurgy, energy and other industries.

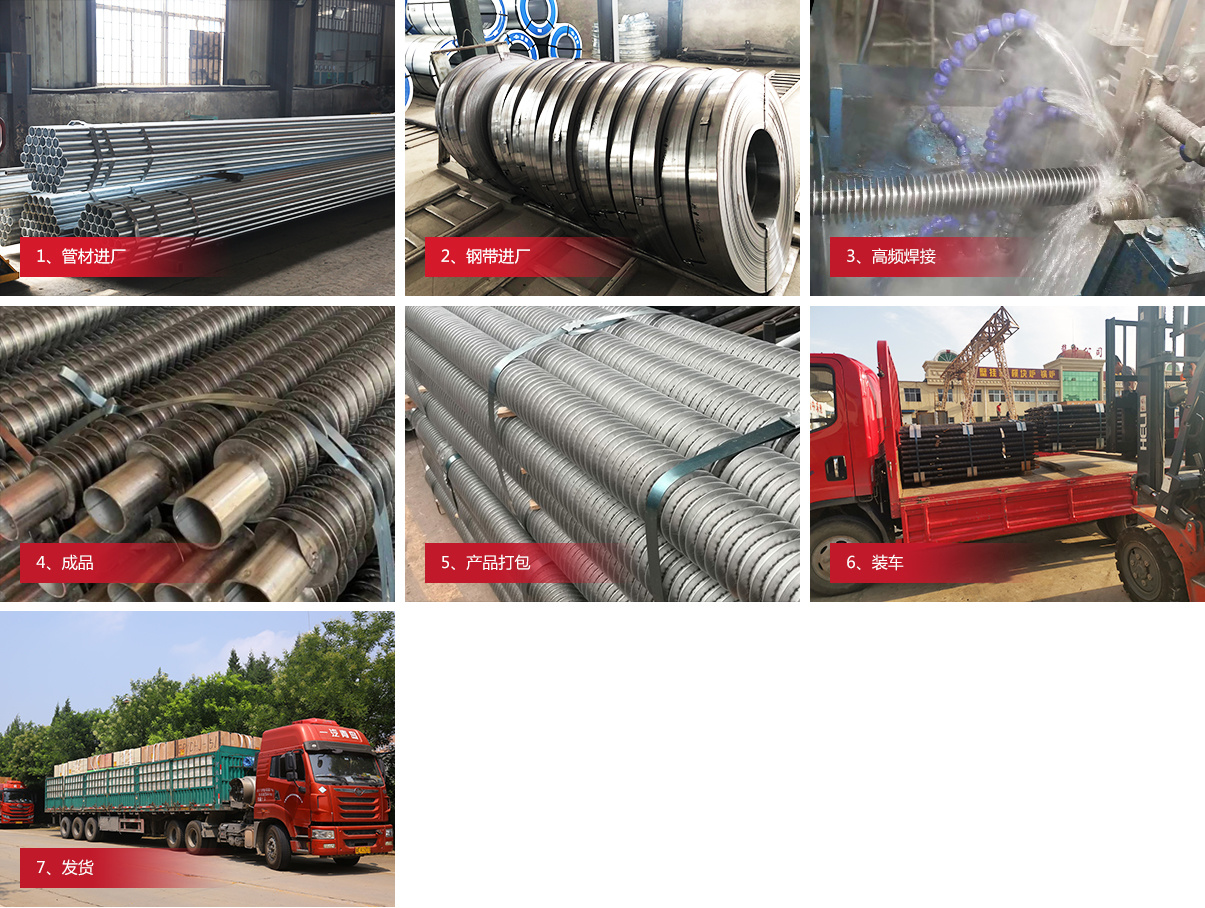

Production process
Company Profile
The company's main products include fin tubes, fin tube radiators, fin tube heat exchangers, heaters, air preheaters, air coolers, etc. Product materials include steel, stainless steel, steel-aluminum composite, etc., and are widely used in chemical, petroleum, power, electric power, food, textile, printing and dyeing and other industries. The company strives for survival by quality, seeks benefits from management, takes scientific and technological innovation as the driving force for development, regards integrity as the foundation of the enterprise, and establishes a customer-centered business philosophy. Our products cover nearly 30 provinces, cities, and autonomous regions in China, and we have established long-term cooperative relationships with many of the top 500 companies in the country.
Personalized Customization Process
Product specifications and models, support processing customization
