To provide you with high-quality and efficient heat exchange exclusive solutions |20 years focus on finned tube radiator, heat exchanger design and production strength enterprises
-
Heat ExchangerHeat Exchanger
Heat exchangers are a very good energy-saving device that can reuse energy that would otherwise be wasted. -
Heat SinkHeat Sink
The industrial radiator adopts steel double-circuit (two rows) or multi-circuit (four rows, six rows) structure. The fin tube adopts winding molding process. The base tube is Ф18*2mm, the sheet height is 10mm, and the sheet thickness is 0.3mm. The distance between the sheets is 3mm, with high pressure bearing and corrosion resistance; -
Products
The company's main products include fin tubes, fin tube radiators, fin tube heat exchangers, heaters, air preheaters, air coolers, etc. Product materials include steel, stainless steel, steel-aluminum composite, etc., and are widely used in chemical, petroleum, power, electric power, food, textile, printing and dyeing and other industries. -
About
Hebei Rongyang Thermal Energy Equipment Co., Ltd. is a R&D and manufacturer of fin tubes and fin tube equipment. A practitioner who provides technical support in the field of heat transfer and wins reputation with heat exchange efficiency. The company is located in Jizhou, an ancient civilization in Kyushu, in a provincial high-tech development zone. It covers an area of 16,000 square meters and has more than 300 employees. -
News
The company strives for survival by quality, seeks benefits from management, takes scientific and technological innovation as the driving force for development, regards integrity as the foundation of the enterprise, and establishes a customer-centered business philosophy. Our products cover nearly 30 provinces, cities, and autonomous regions in China, and we have established long-term cooperative relationships with many of the top 500 companies in the country.
Copper-aluminum composite radiator
Products
Contact Information
Mobile:+8615503298989
Tel:0086-318-887-7776
E-mail:
hsrongyangnuantong@163.com
Address: No.68 Kaiyuan Road, Jizhou District, Hengshui City

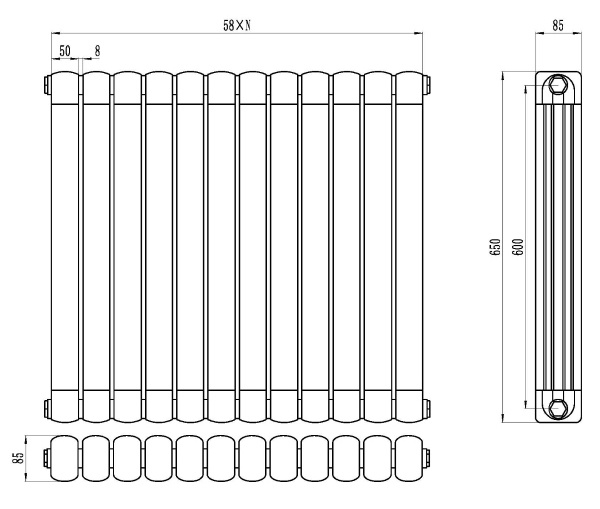

TLF-5085
Brand: Rongyang; Model: TLF-50 * 85; Clearance: 8mm; Center distance: 600mm; Total height: 650mm
- Product Description
-
Brand: Rongyang
Model: TLF-50 * 85
Clearance: 8mm
Center distance: 600mm
Total height: 650mm
Sheet width: 50mm
Thickness: 85mm
Material: 6063 aluminum, TP2 copper tube
Standard accessories: plug, bleed, hook
Installation: wall-mounted/floor typeCopper-aluminum composite radiator 5085 selection table Model single column
Thickness * width mmHeat dissipation W/column ∆T = 64.5 ℃ Pressure Mpa Center distance on the same side (H1)mm 600 1200 1600 1800 RYTLF/X(5085) 50*85 127.1 228.2 303.7 342.8 1.2 RYTLF/X(7575) 75*75 143.0 256.8 341.5 385.6 RYTLF/X(8080) 80*80 151.1 272.3 361.0 410.2 RYTLF/X(8575) 85*75 168.4 303.2 403.4 455.4 RYTLF/X(9090) 90*90 181.1 324.8 431.2 486.9 RYTLF/X(13260) 132*60 238.4 428.0 569.4 642.9
Company Profile
The company's main products include fin tubes, fin tube radiators, fin tube heat exchangers, heaters, air preheaters, air coolers, etc. Product materials include steel, stainless steel, steel-aluminum composite, etc., and are widely used in chemical, petroleum, power, electric power, food, textile, printing and dyeing and other industries. The company strives for survival by quality, seeks benefits from management, takes scientific and technological innovation as the driving force for development, regards integrity as the foundation of the enterprise, and establishes a customer-centered business philosophy. Our products cover nearly 30 provinces, cities, and autonomous regions in China, and we have established long-term cooperative relationships with many of the top 500 companies in the country.
Personalized Customization Process
Product specifications and models, support processing customization
