GLF-6060

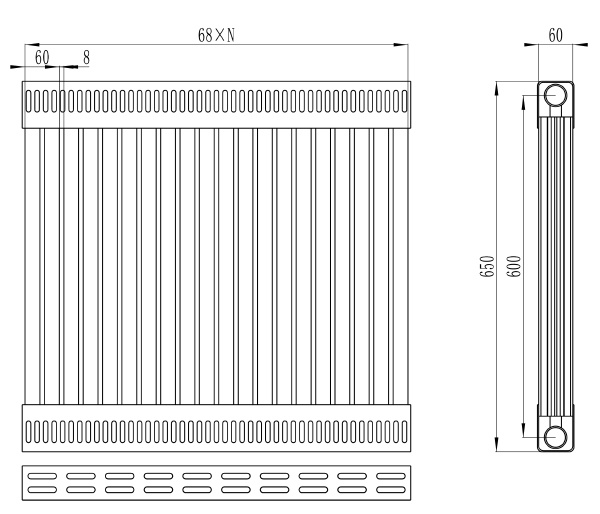

Brand: Rongyang; Model: GLF-60 * 60; Clearance: 8mm; Center distance: 600mm; Total height: 650mm
- Product Description
-
Brand: Rongyang
Model: GLF-60 * 60
Sheet width: 60mm
Thickness: 60mm
Clearance: 8mm
Center distance: 600mm
Total height: 650mm
Material: 6063 aluminum profile, low carbon steel pipe
Standard accessories: running wind, plug, hook
Installation: wall-mounted/floor typeSteel aluminum composite radiator Model single column
Thickness * width mmHeat dissipation W/column ∆T = 64.5 ℃ Pressure Mpa Center distance on the same side (H1)mm 600 1200 1600 1800 RYGLF/X(5085) 50*85 108 183 248 292 1.2 RYGLF/X(6060) 60*60 106 180 243 286 RYGLF/X(7575) 75*75 130 221 298 346 RYGLF/X(8060) 80*60 126 214 289 340 RYGLF/X(8080) 80*80 132 224 303 356 RYGLF/X(11460) 114*60 232 394 533 626
Company Profile
The company's main products include fin tubes, fin tube radiators, fin tube heat exchangers, heaters, air preheaters, air coolers, etc. Product materials include steel, stainless steel, steel-aluminum composite, etc., and are widely used in chemical, petroleum, power, electric power, food, textile, printing and dyeing and other industries. The company strives for survival by quality, seeks benefits from management, takes scientific and technological innovation as the driving force for development, regards integrity as the foundation of the enterprise, and establishes a customer-centered business philosophy. Our products cover nearly 30 provinces, cities, and autonomous regions in China, and we have established long-term cooperative relationships with many of the top 500 companies in the country.
Personalized Customization Process
Product specifications and models, support processing customization
