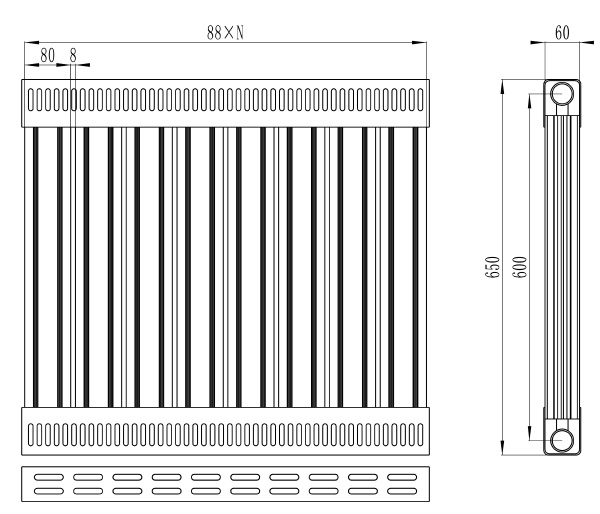

GLF-8060
Brand: Rongyang; Model: GLF-80 * 60; Clearance: 8mm; Center distance: 600mm; Total height: 650mm
- Product Description
-
Brand: Rongyang
Model: GLF-80 * 60
Sheet width: 80mm
Thickness: 60mm
Clearance: 8mm
Center distance: 600mm
Total height: 650mm
Material: 6063 aluminum profile, low carbon steel pipe
Standard accessories: running wind, plug, hook
Installation: wall-mounted/floor typeSteel aluminum composite radiator Model single column
Thickness * width mmHeat dissipation W/column ∆T = 64.5 ℃ Pressure Mpa Center distance on the same side (H1)mm 600 1200 1600 1800 RYGLF/X(5085) 50*85 108 183 248 292 1.2 RYGLF/X(6060) 60*60 106 180 243 286 RYGLF/X(7575) 75*75 130 221 298 346 RYGLF/X(8060) 80*60 126 214 289 340 RYGLF/X(8080) 80*80 132 224 303 356 RYGLF/X(11460) 114*60 232 394 533 626
