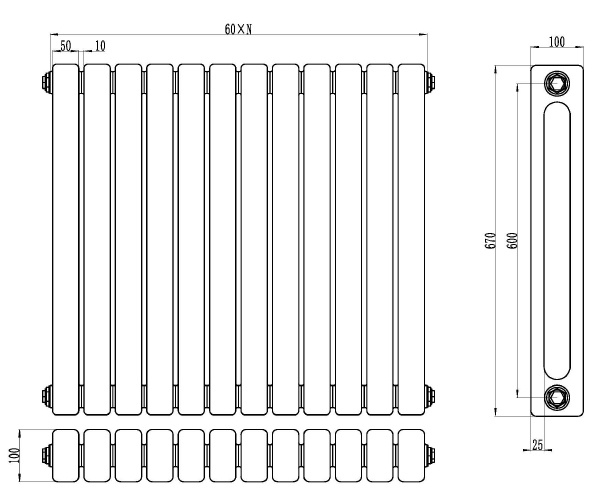

5025 steel two-column radiator (square head)
Brand: Rongyang; Model: GZ2 5025 (square head); Steel pipe: φ50*25mm; Clearance: 10mm; Center distance: 600mm; Total height: 670mm
- Product Description
-
Brand: Rongyang
Model: GZ2 5025 (square head)
Steel pipe: φ50*25mm
Clearance: 10mm
Center distance: 600mm
Total height: 670mm
Thickness: 100mm
Base pipe wall thickness: 1.5mm, 1.8mm, 2.0mm, 2.5mm
Head wall thickness: 1.8mm, 2.0mm, 2.3mm, 2.8mm
Material: low carbon steel pipe
Standard accessories: running wind, plug, hook
Installation: wall-mounted/floor typeSelection Table of Steel Ellipsoid Tube Radiator (5025 Square Head) Specifications and models Center distance of inlet and outlet on the same side (mm) Height
(Mm)Single column length
(Mm)Single column width
(Mm)Working pressure
(Mpa)water capacity
(L)heat dissipation
ΔT = 64.5 ℃ (W)heat dissipation
ΔT = 44.5 ° C (W)RYGTF203-5025 300 370 60 85 1.0 0.810 67.3 42.6 RYGTF204-5025 400 470 60 85 1.0 0.970 82.1 52.2 RYGTF205-5025 500 570 60 85 1.0 1.130 97.7 62.1 RYGTF206-5025 600 670 60 85 1.0 1.290 111.6 70.9 RYGTF207-5025 700 770 60 85 1.0 1.450 127.2 80.6 RYGTF208-5025 800 870 60 85 1.0 1.610 142.8 90.4 RYGTF209-5025 900 970 60 85 1.0 1.770 157.6 99.4 RYGTF210-5025 1000 1070 60 85 1.0 1.930 171.5 107.9 RYGTF211-5025 1100 1170 60 85 1.0 2.090 186.3 118.5 RYGTF212-5025 1200 1270 60 85 1.0 2.260 201.0 127.9 RYGTF213-5025 1300 1370 60 85 1.0 2.410 217.5 137.0 RYGTF214-5025 1400 1470 60 85 1.0 2.570 234.7 147.6 RYGTF215-5025 1500 1570 60 85 1.0 2.740 251.9 158.6 RYGTF216-5025 1600 1670 60 85 1.0 2.900 267.5 168.3 RYGTF217-5025 1700 1770 60 85 1.0 3.060 284.7 179.0 RYGTF218-5025 1800 1870 60 85 1.0 3.220 302.0 190.1
