Carbon steel wound finned tube
Carbon steel finned tube is fin material and base tube material are carbon steel finned tube, using winding process processing.
- Product Description
-
1. Overview
Carbon steel finned tube is fin material and base tube material are carbon steel finned tube, using winding process processing.
2. production process
When the carbon steel finned tube is wound, its fins are inverted Y-shaped. It is to fix the base pipe on a 360-degree rotating transmission winding device, and then select different types of clamps according to different sheet heights and sheet distances. The fins are strip-shaped, and when passing through the fixture, the fins are initially formed and wound on the base tube by mechanical tension.
Carbon steel finned tube spacing is larger, from 3.2-8mm, the thickness is generally 0.2-3mm, the unit heat exchange area is small, the contact thermal resistance is relatively large.
3. features
1. Efficient heat dissipation: the fins of the wound steel finned tube are closely attached to the base tube, which can make use of the heat conduction performance of the base tube to a large extent and improve the heat dissipation efficiency.
2. Strong corrosion resistance: The steel finned tube has undergone anti-rust treatment, which can adapt to various harsh environments and has a long service life.
3. Easy installation: The winding steel finned tube can be installed horizontally or vertically, which is convenient and quick.
4. Convenient maintenance: The fin is closely attached to the base tube, not easy to fall off, and easy to maintain.
4. Application Areas
Winding steel finned tube is widely used in industry, agriculture, construction and other fields. In industry, it can be used for heat dissipation and heat preservation of various industrial equipment; in agriculture, it can be used for heating and heat preservation in greenhouses, farms and other places; in construction, it can be used in air conditioning, heating and other systems.

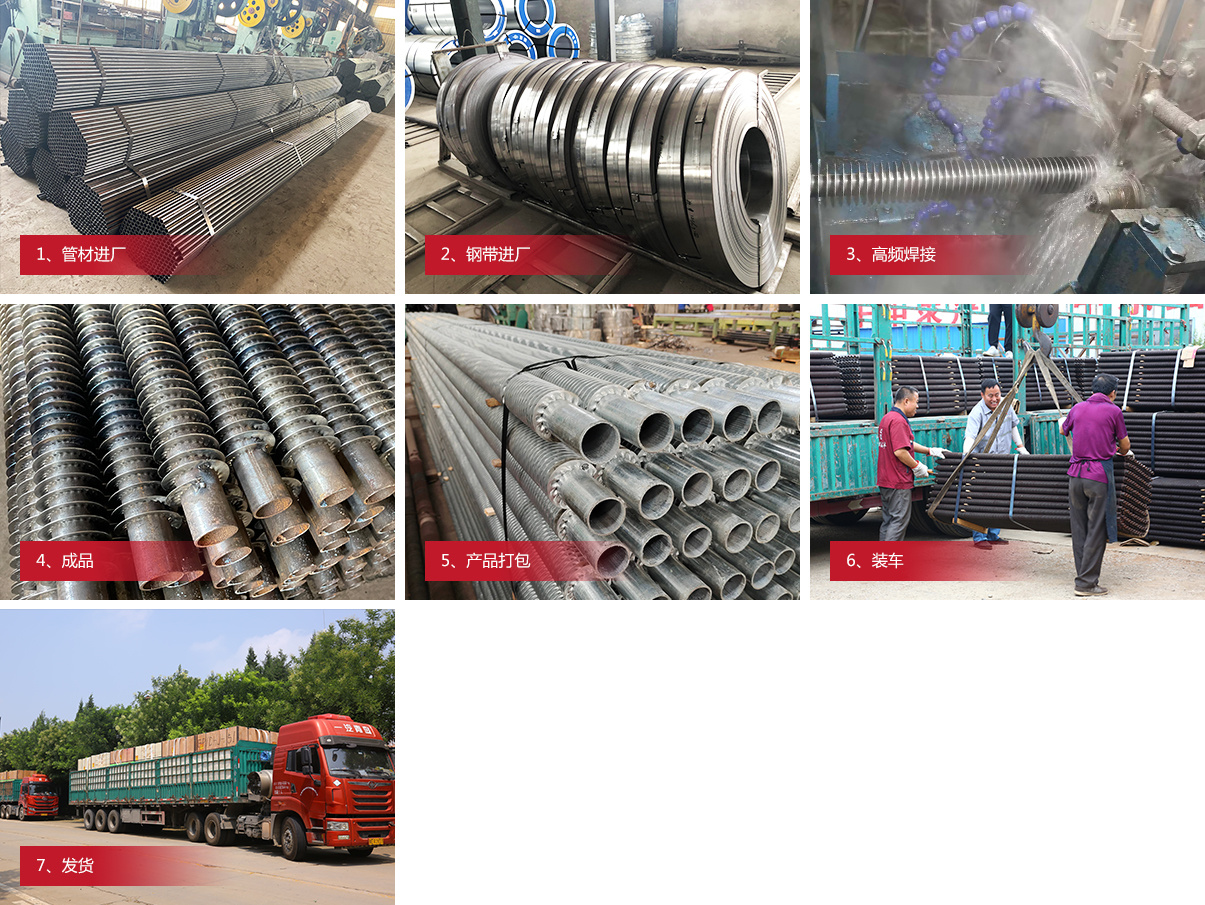

Production process
Company Profile
The company's main products include fin tubes, fin tube radiators, fin tube heat exchangers, heaters, air preheaters, air coolers, etc. Product materials include steel, stainless steel, steel-aluminum composite, etc., and are widely used in chemical, petroleum, power, electric power, food, textile, printing and dyeing and other industries. The company strives for survival by quality, seeks benefits from management, takes scientific and technological innovation as the driving force for development, regards integrity as the foundation of the enterprise, and establishes a customer-centered business philosophy. Our products cover nearly 30 provinces, cities, and autonomous regions in China, and we have established long-term cooperative relationships with many of the top 500 companies in the country.
Personalized Customization Process
Product specifications and models, support processing customization
