DR rolled steel aluminum finned tube
The rolled finned tube is formed by cold rolling of the pressure-resistant base tube and aluminum tube on a special machine tool, which overcomes the shortcomings that aluminum and other metals cannot be welded. It uses the pressure resistance of the base tube and the efficient heat transfer of aluminum. Plasticity, highlighting the characteristics of the two materials in the process.
- Product Description
-
1. Overview
The rolled finned tube is formed by cold rolling of the pressure-resistant base tube and aluminum tube on a special machine tool, which overcomes the shortcomings that aluminum and other metals cannot be welded. It uses the pressure resistance of the base tube and the efficient heat transfer of aluminum. Plasticity, highlighting the characteristics of the two materials in the process.

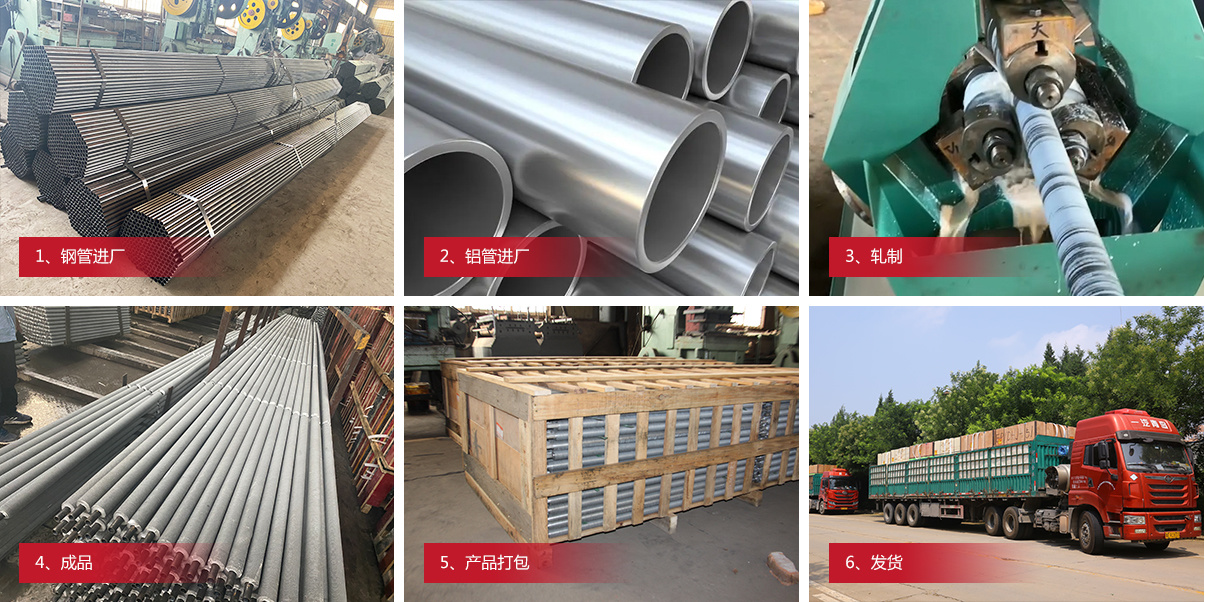

2. production process
Base tube of DR type rolled finned tube
1. The minimum outer diameter of the finned tube base tube is 16mm;
2. The minimum wall thickness of the outer diameter of the base pipe 16-51mm is 1.5mm and can be processed.
3. Common materials are A, carbon steel or ferritic low alloy steel (Cr<9%); B, high alloy steel; C, non-ferrous metal; D, titanium alloy
3. features
1. Strong adaptability to vibration;
2. Anti-corrosion inner tube can be used;
3. Good resistance to atmospheric corrosion;
4. Strong heat transfer performance and reduced pressure;
5. Allowable medium working temperature, steel-aluminum,<280 ℃;
6. Allowable working pressure <32MPa;
7. For occasions requiring corrosion resistance.
4. Application Areas
Widely used in steel, petroleum, chemical, machinery, shipbuilding, power stations and hospitals and food industries.
Table 2 Specifications of Common Heat Exchange Components
Finned tube category Base pipe Fin material finned tube Remarks Materials Diameter (mm) Pitch (mm) Sheet height (mm) Post-processing L-type finned tube (L) Steel Aluminum 25，32，38 Aluminum 2．3，2．5，2．8，3．2，3．6 12．5，16 1. The sheet height data of oval tube sleeve fin sleeve tube and plate fin sleeve tube are fin external dimensions.
2. Each plate fin sleeve tube passes through 60 tubes.
3. The base pipe is carbon steel, and stainless steel, chromium molybdenum steel, titanium pipe, etc. can also be selected according to the medium for users to choose.Double L-shaped finned tube (LL) Steel Knurled finned tube (KL) Inlaid finned tube (G) Bimetallic Rolled Tube (DR) Steel 2.3-3.0 8-16 Wash white Table 3 Different specifications of finned tube fin ratio table
Finned tube type Base pipe diameter mm Finned tube diameter (fin height) mm Wing ratio Fin spacing mm 2．3 2．5 2．8 3.2 3．6 Winding tube (l) 25 50(12．5) 16．91202 15．48172 14．01474 12．58444 11．15413 57(16) 23．39836 21．38383 19．31766 17．30314 15．28862 32 57(12．5) 15．72346 14．39958 13．04175 11．71787 10．39399 64(16) 21．45394 19．61392 17．72672 15．88670 14．04668 38 63(12．5) 15．05322 13．78935 12．49307 11．22921 9．96534 70(16) 20.35747 18．61585 16．82957 15．08796 13．34634 Double L-wound tube (LL) 25 50(12.5) 16．57545 15．17834 13．74541 12．3483l 10．95120 57(16) 23．06179 21．08046 19．04833 17．06701 15．08568 32 57(12．5) 15．38474 14．09362 12．76939 11．47827 10．18715 64(16) 21．11522 19．30796 17．45436 15．647l0 13.83984 38 63(12．5) 14．71328 13．48193 12．21900 10．98765 9．75629 70(16) 20．01753 18．30843 16．55550 14，84640 13．13730 Insert tube (G) 25 50(12．5) 17．23750 15．77500 14．27500 12．81250 11．35000 57(16) 23．72384 21．67712 19．57792 1 7.53120 15．48448 32 50(12．5) 16.05352 14.69766 13.30703 11.95117 10.59531 64 (16) 21.78400 19.91200 17.99200 16.12000 14.24800 38 63（12.5） 15.38585 14.099013 12.76118 11.46546 10.16974 70（16) 20.69011 18.91663 17.09768 15.32421 13.54462 Bimetallic Rolled Tube (DR) 25 50(12．5) 16.40300 15.02287 13.60735 12.22722 10.84709 57(16) 22.88935 20.92499 18.91027 16.94592 14.98157 32 50(12．5) 15.21213 13.93768 12.63056 11.35611 10.08166 64 (16) 20.94261 19.15203 17.31553 15.52494 13.73435 38 63（12.5） 14.54058 13.32573 12.07973 10.86488 9.65003 70（16) 19.84483 18.15223 16.41623 14.72363 13.03103 Production process
