SRZ radiator is used as an air heater for heating air in hot air devices. It is mainly used for air heating of hot air heating, air conditioning systems and drying devices. It is the main equipment in hot air devices. Suitable for both steam systems and hot water systems.
- Product Description
-
1. SRZ Heatsink Overview
1.SRZ radiator is used as an air heater for heating air in hot air devices. It is mainly used for air heating of hot air heating, air conditioning systems and drying devices. It is the main equipment in hot air devices. Suitable for both steam systems and hot water systems. It is composed of carbon steel frame and carbon steel heat dissipation pipe (carbon steel heat dissipation pipe). The steel heat dissipation pipe is fixed by frame, with compact structure, good air tightness and convenient installation. SRZ steel radiator is widely used in current industrial and mining enterprises, heating and ventilation systems of large buildings and air heating systems of drying devices.
2. The SRZ radiator is composed of three rows of cross-arranged spiral finned tubes in the air flow direction, which are cross-arranged. The processing technology is to wind the cold-rolled steel strip on the seamless steel pipe by mechanical winding method. SRZ steel radiator plates have three types of spacing: 5mm-large "D", 6mm-medium "Z" and 8mm-small "X", with a total of 38 specifications.
3.SRZ type radiator working medium: steam working pressure is 0.3-8kg/cm2, hot water temperature can be around 130-70 ℃.
4.SRZ radiator model description: SRZ ① × ② ③-
①-Indicates that the long dimension of the normal section of the Poetry radiator is decimeter.
②-Showing the poetic radiator Tongrui normal section width dimension decimeter
③-Indicates the heat dissipation capacity of the steel radiator (large D, medium Z, small X)
Technical Parameters of 2. SRZ Radiator
Table 1. Heat transfer coefficient K(kcal/m².h.℃) under different air weight flow rates when the heat medium of SRZ radiator is steam
Vr(kg/m².s) 2 4 6 8 10 12 14 16 18 20 SRZ □ × 5, 6, 10 D 、 Z 16.9 23.2 27.3 32.5 36.3 39.7 42.9 45.7 48.5 51.0 X 18.0 26.0 32.4 37.8 42.5 47.1 51.0 55.0 58.4 62.0 SRZ□×7 D 、 Z 17.5 25.0 30.6 35.5 39.8 43.7 47.3 50.6 53.7 56.6 X 19.3 28.7 36.0 42.6 48.4 53.7 58.7 63.4 68.0 72.0 Table 2. Air passage resistance H (mm water column) of SRZ type radiator at different air weight flow rates
Vr(kg/m².s) 2 4 6 8 10 12 14 16 18 20 SRZ □ × 5, 6, 10 D 0.72 0.86 6.42 11.15 17.80 25.62 34.90 44.50 61.20 69.75 Z 0.59 2.32 5.18 9.15 14.25 20.55 27.7 36.30 46.35 56.20 X 0.39 1.72 4.03 7.38 11.90 12.0 34.3 32.40 41.40 51.80 SRZ□×7 D 0.82 3.15 7.16 12.65 19.80 27.0 37.0 46.70 58.50 73.00 Z 0.86 2.46 4.57 7.08 10.00 13.05 36.75 20.10 24.30 28.50 X 0.53 2.02 4.36 7.56 11.60 14.45 22.15 28.60 35.70 43.20 Table 3. Partial performance experimental formula of SRZ radiator under different air weight velocity Vr
Model specifications Heat transfer coefficient (Kcal/m³ · h · ℃) Air resistance △H (mm water column) SRZ× 5 、 6 、 10 D K = 11.7(Vr)0.490 (steam) △H=0.18(Vr)1.998 Z △H=0.15(Vr)1.980 X K = 12.5(Vr)0.532 (steam) △H=0.09(Vr)2.120 SRZ× D K = 12.3(Vr)0.510 (steam) △H=0.21(Vr)1.970 Z △H=0.30(Vr)1.520 X K = 13.0(Vr)0.571 (steam) △H=0.30(Vr)1.91 Table 4.SRZ type radiator heat dissipation area F(m²), ventilation net cross-sectional area Ff(m²), reference weight W(Kg), related dimensions (mm) list

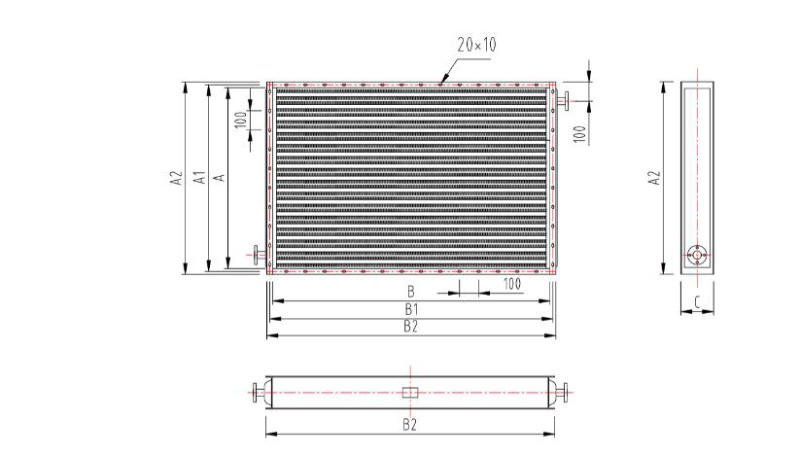

Model Heat dissipation area (M²) Net cross-sectional area of ventilation (M²) Cross-sectional area of heat medium passing through (M²) Number of pipe rows (rows) Number of spiral finned tubes (root) Connecting pipe φ (inch) Dimensions (mm) Weight (kg) A A1 A2 B B1 B2 n N m M SRZ-5x5(D) 10.13 0.154 0.0043 3 23 1 ½" 497 532 562 507 547 573 5 500 4 400 54 SRZ-5x5(Z) 8.78 0.155 48 SRZ-5x5(X) 6.23 0.158 45 SRZ-10x5(D) 19.92 0.302 1001、1250 1041、1290 1067、1316 9、12 900、1200 93 SRZ-10x5(Z) 17.26 0.306 84 SRZ-10x5(X) 12.22 0.312 76 SRZ-12x5(D) 24.86 0.378 113 SRZ-6x6(D) 15.33 0.231 0.0055 3 29 2” 623 658 688 609 649 675 6 600 5 500 77 SRZ-6x6(Z) 13.29 0.234 69 SRZ-6x6(X) 9.43 0.239 63 SRZ-10x6(D) 25.13 0.381 1001 1041 1067 9 900 115 SRZ-10x6(Z) 21.77 0.385 103 SRZ-10x6(X) 15.42 0.393 93 SRZ-12x6(D) 31.35 0.475 1250 1290 1316 12 1200 139 SRZ-15x6(D) 37.73 0.572 1505 1545 1571 14 1400 164 SRZ-15x6(Z) 32.67 0.579 146 SRZ-15x6(X) 23.13 0.591 139 SRZ-7x7(D) 20.31 0.320 0.0063 3 33 2” 717.5 742 772 710 750 776 7 700 6 600 97 SRZ-7x7(Z) 17.60 0.324 87 SRZ-7x7(X) 12.48 0.329 89 SRZ-10x7(D) 28.59 0.450 1001 1041 1067 9 900 129 SRZ-10x7(Z) 24.77 0.456 115 SRZ-10x7(X) 17.55 0.464 104 SRZ-12x7(D) 35.67 0.563 1250 1290 1316 12 1200 156 SRZ-15x7(D) 42.93 0.678 1505 1545 1571 14 1400 183 SRZ-15x7(Z) 37.18 0.685 164 SRZ-15x7(X) 26.32 0.698 145 SRZ-17x7(D) 49.90 0.788 1750 1790 1816 17 17 210 SRZ-17x7(Z) 43.21 0.797 187 SRZ-17x7(X) 30.58 0.812 169 SRZ-22x7(D) 62.75 0.991 0.0063 3 33 2 ½" 2202 2242 2268 21 2100 260 SRZ-15x10(D) 62.14 0.921 0.0089 3 47 2 ½" 1001 1036 1066 1505 1545 1571 10 1000 14 1400 255 SRZ-15x10(Z) 52.95 0.932 227 SRZ-15x10(X) 37.48 0.951 203 SRZ-17x10(D) 71.06 1.072 1750 1790 1816 17 1700 293 SRZ-17x10(Z) 61.54 1.085 260 SRZ-17x10(X) 43.56 1.106 232 SRZ-20x10(D) 81.27 1.226 2002 2042 2068 19 1900 331 Production process
